McLaren launched the MCL60 on Monday – however is their new automobile a whole alternative of final yr’s MCL36 or a extra discreet replace? F1 technical knowledgeable Mark Hughes takes a have a look at the variations…

McLaren’s new MCL60 is actually an additional evolution of a automobile that was developed fairly closely over the previous season beneath the guise of the MCL36. The staff warns that extra are to come back when it comes to main adjustments, however warn that the early-season car will look similar to the one unveiled immediately on the McLaren Expertise Middle.

Of all of the 2023 automobiles launched to date, it is clear that the principle preoccupation of the groups is to enhance floor impact underfloor efficiency. Way more lap time may be discovered from this than with the outer fairing and wings.

AS IT IS: Watch McLaren unveil the brand new MCL60

The evolution of McLaren sidepods in 2022, with important upgrades to be made in France (backside) and Singapore (middle), each to enhance under-floor efficiency. The present sidepods are on the prime of the comparability.

Any change within the exterior geometry of automobiles is all the time only a operate of makes an attempt to make the bottom work higher. So we see McLaren creating important house within the decrease entrance of the sidepod (presumably with a rearrangement of the radiator association).

Final yr, McLaren’s evolution stripped the entrance of the aspect pods to create extra room to vary the geometry of the ground air intakes, with physique updates on the French and Singapore Grands Prix.

TECHNICAL ANALYSIS: Williams continues the Crimson Bull-like development with FW45 design

This course of was continued for the MCL60 and it may be seen that the consumption wings have truly been utterly reshaped.

The dimensions changes enable for fairly a variety of top the place the air consumption may be positioned, and by stripping the underside nook of the sidepod McLaren seems to have modified the angle of the air consumption. The objective is to offer a difficult mixture of fine downforce and constant stability all through the nook – a problem that has confirmed very tough for a lot of groups beneath floor impact laws, particularly McLaren.

side file.jpg

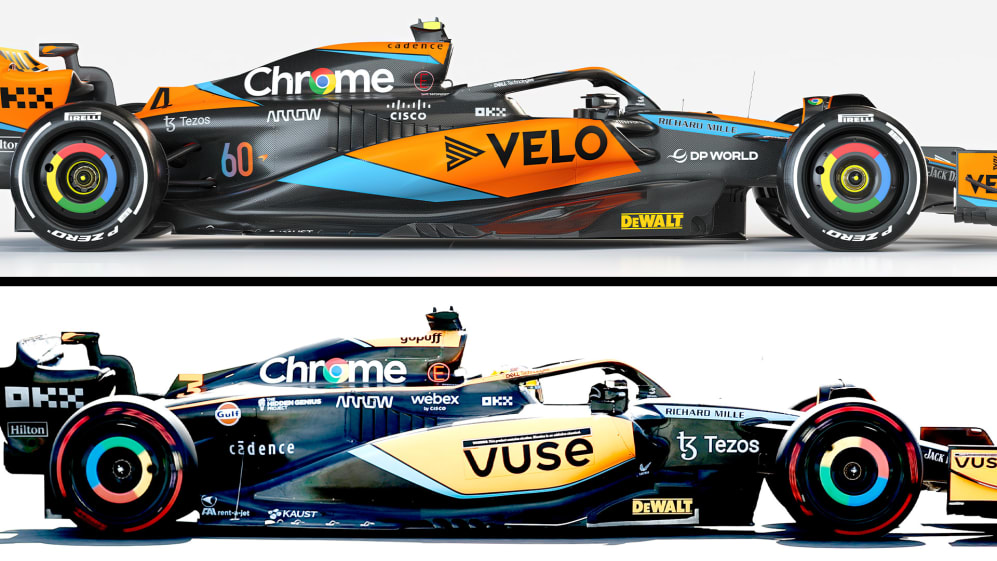

A comparability of final yr’s McLaren MCL36 (backside) and MCL60 (prime) reveals how house is created across the decrease entrance of the sidepod, which is much less chunky than earlier than. It is all about enhancing the entrances for the underfloor floor impact.

This improvement course is in keeping with the suggestions from Lando Norris (and outgoing Daniel Ricciardo) in regards to the limitations of earlier automobiles. “I push for myself what I want,” Norris stated on the launch.

“I spent a while going over issues with the engineers to verify they perceive what we’re battling and a few of our options that we have not modified a lot over the previous couple of years. There’s slightly extra stress on that this yr.

“Perhaps this yr’s automobile will swimsuit me higher – however not solely that; it also needs to be a sooner automobile. This was one thing Daniel and I complained about rather a lot. If we will take a step [the drivers] can get extra out of the automobile.”

ANALYSIS: Why AlphaTauri’s launch gave us fascinating clues in regards to the AT04

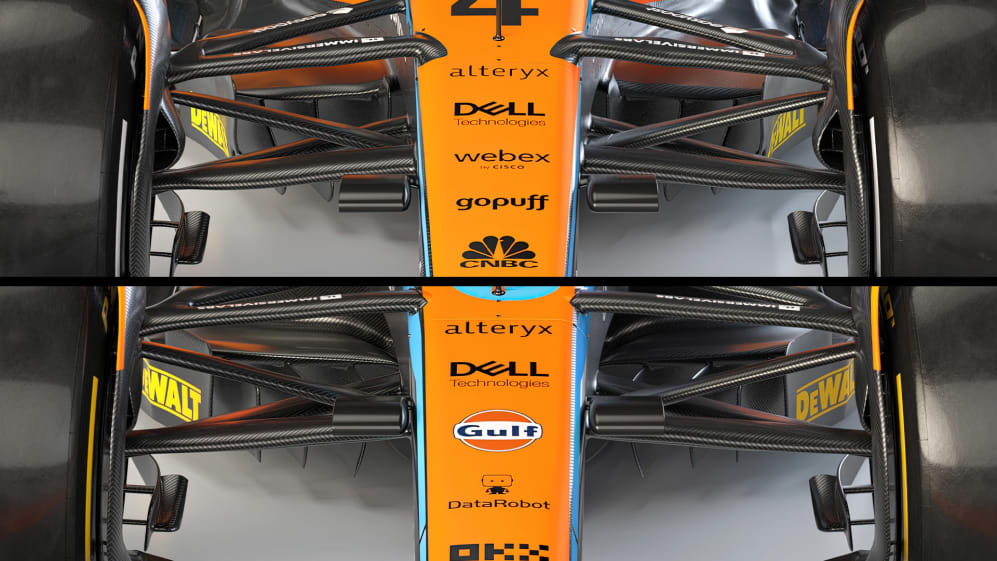

The underfloor fins (backside of final yr’s automobile, above the MCL60) have been vastly revised.

The entrance towbar and rear pushrod suspension of the earlier automobile has been retained. Adjustments to the styling of the sidepods’ prime floor are seemingly in response to revised radiator placements on the backside, creating house for improved ground intakes within the decrease entrance of the pods.

McLaren is aiming for the highest 4 within the championship, however warns they might not be at that stage immediately, as the subsequent deliberate improve evolution will stay within the pipeline till just a few races of the season.
